When installing new equipment — whether upgrading an existing system or launching a new process — every detail matters. You’ve accounted for equipment specs, load demands, and potential failure points. But one often-overlooked factor can have long-term consequences: the grout beneath the base.
Choosing between epoxy vs cement grout plays a critical role in stability, alignment, and performance. This decision affects everything from cure time and chemical resistance to long-term durability and maintenance costs.
Start with Three Critical Questions
When comparing epoxy vs cement grout, start by evaluating these three critical jobsite conditions:
Will the equipment face constant vibration or impact? → Choose epoxy grout – Superior resistance to dynamic loads
Will chemicals contact the base or surrounding concrete? → Choose epoxy grout – Better chemical attack resistance than cement-based options
Will operating temperatures regularly exceed 150°F? → Choose cement grout – Better performance under sustained high heat
Once you’ve answered these questions, the choice between epoxy vs cement grout becomes clearer. After that, select a specific formulation based on your application’s demands — whether that’s flowability, strength, or temperature tolerance.
Compressive Strength: Commonly Misunderstood
Compressive strength is often the first metric engineers consider when selecting grout for equipment installation. It refers to how much pressure a material can withstand before failing. A grout rated at 14,000 psi, for example, should hold up under that load without crushing.
However, in real-world equipment installations, grout rarely fails because of low compressive strength. While epoxy grouts typically post higher strength ratings, modern cement grouts have narrowed the gap significantly. Some high-performance cementitious products now rival or even exceed epoxy in this category.
Key considerations for grout strength:
- How strength develops over time under actual jobsite conditions
- Temperature effects during curing
- Environmental control during grout placement
- Long-term performance under operating loads
When weighing epoxy vs cement grout strength, don’t focus on lab numbers alone. Consider the complete performance profile for your specific application.
Recommended Products:
Cost Considerations: Value vs. Overkill
The cost difference between epoxy vs cement grout is substantial. Epoxy grouts often cost three to four times more than cement-based options, and specialized formulations can drive costs even higher.
Factors affecting grout costs:
- Material price (epoxy significantly higher)
- Installation complexity
- Cure time (affects project timeline)
- Long-term maintenance requirements
- Replacement costs for premature failure
Because of this cost difference, teams frequently question whether epoxy’s added performance is necessary. In many static or non-aggressive environments, cement grout offers adequate performance at a fraction of the cost.
Best practice: Use epoxy when exposure conditions or dynamic loading justify the premium. Don’t default to epoxy when a properly selected cement grout will perform adequately.
Recommended Products:
Chemical Resistance: Match It to the Environment
In installations where equipment contacts chemicals — through operation, cleaning, or accidental spills — grout selection becomes critical for long-term durability.
Epoxy grout advantages:
- Stronger resistance across wide pH range
- Handles acids, alkalis, and solvents
- Non-porous surface resists chemical penetration
Cement grout limitations:
- Susceptible to acid attack
- Porous structure allows chemical penetration
- Limited resistance to aggressive chemicals
Important: Always check the chemical resistance chart for your specific grout. If data doesn’t address your use case, run lab tests under actual site conditions before proceeding.
The cost of chemical-resistant grout is minor compared to damage and downtime from in-service failure.
Recommended Products:
Impact Resistance: Think Beyond Static Load
Equipment applications involving stamping operations, pump cavitation, or rapid conveyor braking create sudden impact forces. Your grout selection must absorb this energy without cracking or failing.
Epoxy vs cement grout impact performance:
Epoxy grout benefits:
- Low-modulus polymer structure flexes under stress
- Absorbs shock and returns to form without damage
- Superior performance under dynamic loads
Cement grout characteristics:
- Inherently more brittle material
- Handles compressive loads well but poor impact tolerance
- Especially vulnerable in thinner pours
Modified cement options:
- Metallic grouts with metal fillers for increased toughness
- Hybrid grouts combining cement with polymer additives
- Improved impact resistance while maintaining easier handling
Base your grout selection on real operating stress conditions, not just static loading requirements.
Recommended Products:
Vibration Dampening: Protect Equipment and Foundations
Constant vibration gradually damages equipment alignment, reduces bearing life, and compromises concrete foundations. Proper grout selection directly impacts system longevity.
Epoxy grout advantages for vibration control:
- Strong bond to steel baseplates and machinery frames
- Efficient load energy transfer reduces localized stress
- Nearly 100% effective bearing area when properly placed
- Slight flexibility absorbs residual vibration
- Protects both equipment and foundation structure
Cement grout limitations:
- More rigid material transmits vibration
- Lower bond strength to metal surfaces
- Less effective at vibration dampening
For equipment in dynamic environments, epoxy grout’s vibration dampening capabilities often justify the additional cost.
Recommended Products:
High Temperature Resistance: Know the Limits
Extended high-temperature exposure weakens materials, distorts alignments, and reduces service life. Understanding temperature limits is crucial for grout selection.
Temperature performance comparison:
Epoxy grout limitations:
- Typically rated for continuous exposure up to 150°F
- May soften or lose structural integrity beyond rating
- Performance degrades under combined heat and load
Cement grout advantages:
- Standard formulations handle up to 350°F continuous
- Specialized versions withstand up to 2400°F
- Maintains structural integrity under sustained heat
For high-temperature applications, cement grout is generally the more reliable choice.
Recommended Products:
Flowability: Often Overlooked, But Critical

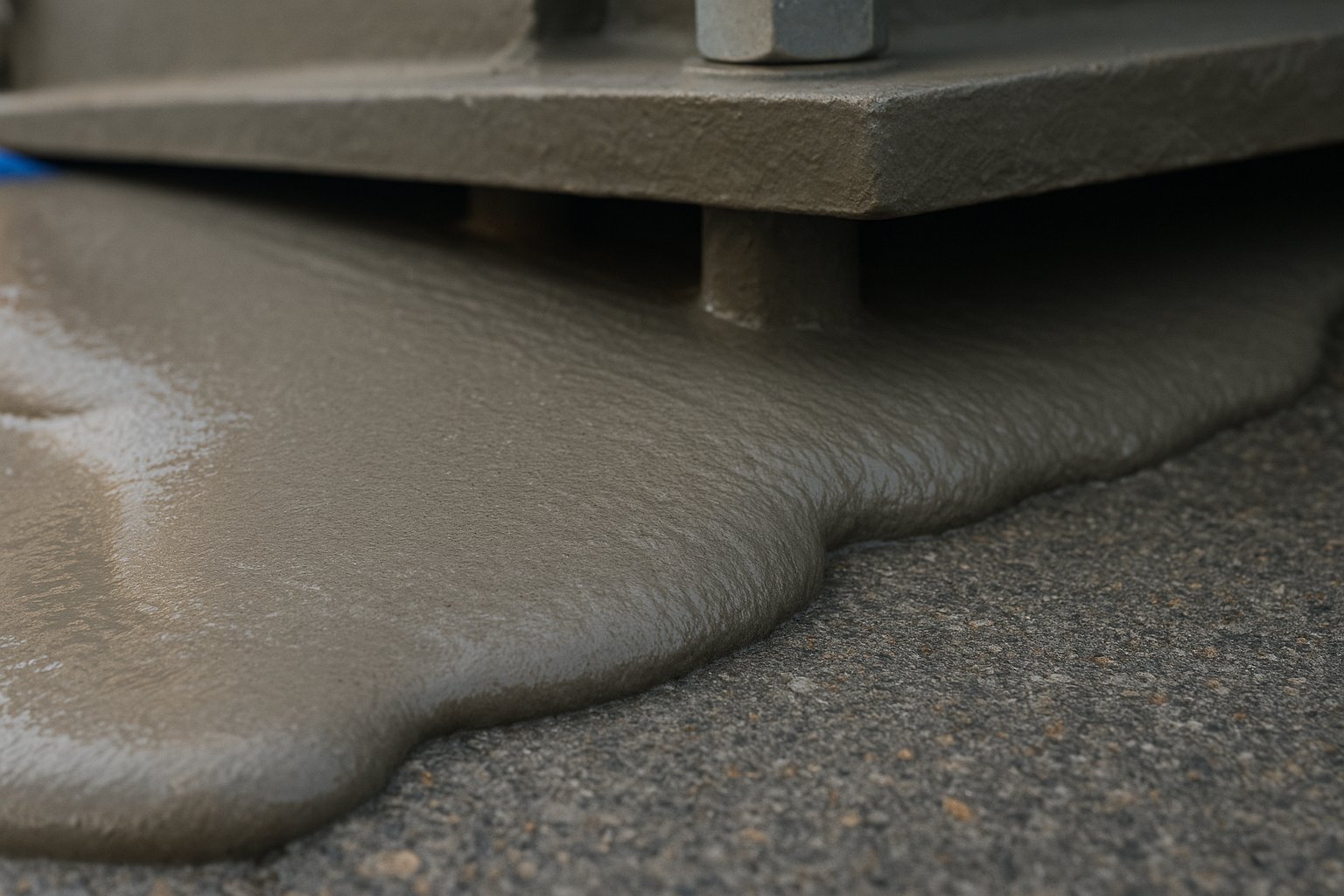

Proper grout flow under baseplates and into tight clearances ensures full support and long-term performance. Flow characteristics significantly impact installation success.
Cement grout flow properties:
- Uses water and lime for lubricated mix
- Flows easily when properly mixed
- More forgiving during placement
- Better for larger pours
Epoxy grout flow challenges:
- Behaves more like adhesive
- Resists movement and sticks to surfaces
- Complicated placement in low-clearance areas
- Cold temperatures increase viscosity
Installation considerations:
- Factor in ambient temperature
- Consider mixing method requirements
- Account for working time limitations
- Plan placement sequence carefully
Recommended Products:
Application Selection Guidelines
Choose Epoxy Grout When:
- Equipment experiences vibration or impact loading
- Chemical exposure is expected in service
- Fast cure time is project-critical
- Maximum vibration dampening is required
- Premium performance justifies higher investment
Choose Cement Grout When:
- Operating temperatures exceed 150°F (65°C)
- Cost optimization is a primary concern
- Static loading conditions predominate
- Large volume installations are required
- High-temperature resistance is essential
Frequently Asked Questions
When should I choose epoxy grout over cement grout? Choose epoxy grout for applications involving vibration, impact loading, chemical exposure, or when superior bond strength is required. It’s ideal for precision equipment installations.
Is epoxy grout always stronger than cement grout? Not necessarily. While epoxy typically has higher compressive strength, modern high-performance cement grouts can match or exceed epoxy in some applications.
Can I use cement grout in chemical environments? Standard cement grout has limited chemical resistance. For chemical exposure, epoxy grout or specialized chemical-resistant cement formulations are recommended.
What’s the temperature limit for epoxy grout? Most epoxy grouts are rated for continuous exposure up to 150°F. Beyond this temperature, cement grout is typically the better choice.
How much more does epoxy grout cost? Epoxy grout typically costs 3-4 times more than cement grout, not including potential installation complexity costs.
Which grout type is easier to install? Cement grout is generally easier to handle and install, with more forgiving flow characteristics and longer working times.
Making the Right Choice: Epoxy vs Cement Grout
The choice between epoxy vs cement grout ultimately comes down to matching material properties to your specific operating conditions, performance requirements, and project constraints. Use epoxy grout for applications involving chemical exposure, vibration, and impact loading where premium performance justifies the higher investment. Choose cement grout for high-temperature environments, cost-sensitive projects, and static loading conditions where reliability and value are paramount.
Success in industrial grout selection comes from understanding real-world operating demands rather than simply choosing the highest-specification product available. Consider total cost of ownership, installation requirements, environmental conditions, and long-term performance expectations when making your final decision between epoxy and cement grout options.
