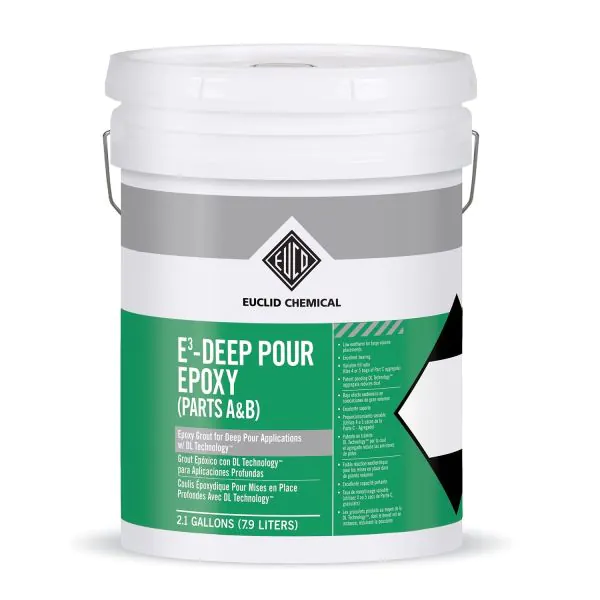

Euclid E3 Deep Pour is a heavy-duty, three-component epoxy grout formulated for deep pours and high-volume industrial grouting applications. Built to handle critical equipment installations, this high-performance grout combines flowability with robust mechanical properties to ensure reliable support for heavy machinery, even under demanding conditions. Its low exotherm chemistry allows for thick pours, up to 18 inches per lift, without compromising strength or stability. Whether you’re anchoring turbines, setting compressor bases, or rebuilding structural foundations, E3 Deep Pour maintains tight tolerances and exceptional bearing across large placements. Euclid’s patented DL Technology aggregate also minimizes airborne dust during mixing, improving both jobsite cleanliness and worker safety. It’s a smart solution for contractors who need dependable performance in deep, complex grouting scenarios.
✨ Looking for the Flowable Version?
We’re here to answer all of your questions about Euclid E3 Flowable, or any of the other products we carry.
Key Features of E3 Deep Pour
- Low Exotherm Profile
Formulated for deep placements without overheating or shrinkage, even up to 18 inches per lift. - DL Technology Aggregate
Patented system that significantly reduces airborne dust during handling and mixing. - Exceptional Strength
Delivers compressive strengths over 15,000 psi at 28 days, ensuring long-term support under heavy equipment. - Non-Shrink & Expansive
Maintains volume stability during curing for tight contact with baseplates and foundations. - Long Working Time
Up to 90 minutes of working time in standard conditions allows for efficient placement in complex forms. - Excellent Bonding
Strong adhesion to concrete and steel enhances load transfer and vibration resistance.
Recommended Uses
E3 Deep Pour is ideal for contractors and maintenance teams tasked with setting or rebuilding large, critical equipment foundations where depth, durability, and stability matter. It’s suited for:
-
- Turbine housings and generator pads
- Pour-backs in post-tension projects
- Anchor bolt and blockout grouting
- Rebuilding concrete bases and columns
- Precision baseplate installations
- Industrial tank supports and pump bases
Complete Technical Specifications – E3-Deep Pour
High strength epoxy grout with DL Technology™ aggregate for deep pour industrial applications.
15,000 PSI Ultimate Strength
50-90°F Application Temp
API 610 Appendix L
70-90 min Working Time
DL Technology™ Low Dust Aggregate
Low Exotherm for Large Volumes
Expansive/Non-Shrink Formula
Excellent Chemical Resistance
Frequently Asked Questions
What is the maximum depth I can pour in one lift?
Up to 18 inches per lift for standard mix; high flow mix is limited to 9 inches.
How long is the working time of E3 Deep Pour once mixed?
Standard mix allows up to 90 minutes; high flow mix up to 70 minutes depending on temperature.
What are the compressive strength values?
Up to 15,100 psi at 28 days (high flow mix), ensuring excellent load-bearing capacity.
Can E3 Deep Pour be used in high-vibration environments?
Yes. It is suitable for vibration-dampening applications and meets API 610, Appendix L standards.
Is special curing required?
No special curing procedures are necessary. However, bring materials and surfaces to around 75°F for best results.
How is E3 Deep Pour packaged?
Kits yield 1.4 ft³ in standard mix or 1.15 ft³ in high flow mix. Each kit includes pre-measured resin, hardener, and aggregate.
