Euclid E3 Flowable

Euclid E3 Flowable is a precision-grade, three-component epoxy grout built for heavy-duty industrial applications that demand fluid consistency, structural integrity, and quick turnaround. Its high-flow formulation allows it to fill tight spaces beneath large baseplates, machinery, and structural components—eliminating voids and improving load transfer efficiency.

As a result, it’s well-suited for installations with narrow clearances or dense anchor patterns. Euclid’s patented DL Technology aggregate also reduces airborne dust during mixing, which improves jobsite safety and cleanliness.

E3 Flowable reaches compressive strengths over 10,000 psi within 24 hours and maintains long-term chemical resistance and dimensional stability. Whether used under turbines, motors, pump skids, or rail systems, it provides dependable bearing support and consistent performance—even in harsh conditions or complex placements.

Key Features of E3 Flowable

• Dust-Reducing Aggregate
  DL Technology significantly lowers dust release during mixing and handling.
• Exceptional Flow Characteristics
  Ideal for grouting under large plates, baseplates, and anchor bolts with narrow access.
• High Early Strength
  Achieves up to 10,000 psi compressive strength in just 24 hours.
• Excellent Bearing Support
  Delivers >95% effective bearing area for reliable load transfer.
• High Chemical and Abrasion Resistance
  Withstands harsh environments, including exposure to industrial chemicals and heavy traffic.
• Simple Water-Based Cleanup
  Tools can be cleaned with soap and water before the material cures.

Recommended Uses for E3 Flowable

Euclid E3 Flowable is best suited for installations requiring maximum precision and long-term structural integrity. Its flowable consistency and performance characteristics make it ideal for:

• Equipment requiring precision alignment: compressors, generators, pumps, and motors
• Baseplates and structural elements with limited clearance
• Anchor bolt grouting and rail installations
• Facilities needing fast turnaround with high mechanical strength

Applications Include:

• Chemical processing plants
• Power generation stations
• Water treatment facilities
• Marine and transportation infrastructure
• Steel and heavy manufacturing plants

Frequently Asked Questions

What is the working time of Euclid E3 Flowable?
At 73 °F (23 °C), the standard mix provides a working time of approximately 95 minutes. In comparison, the high-flow version allows about 68 minutes.

Can E3 Flowable be used in thick pours?
Yes. It supports pours from ½ inch (12 mm) up to 6 inches (150 mm), so it works well for deep grouting applications.

Does E3 Flowable require special curing procedures?
No. It cures efficiently under standard conditions without any special treatment.

Is surface preparation critical?
Yes. To ensure proper bond and long-term performance, you must prepare the surface to a CSP 5–7 profile as defined by ICRI 310.2.

How is E3 Flowable packaged?

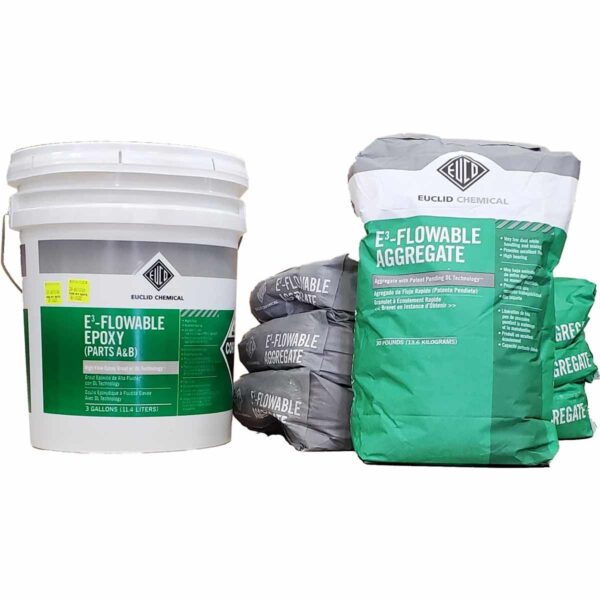

It’s available in three kit sizes:

• 1.53 ft³ standard kit – includes 1 pail and 5 bags of aggregate

• 1.35 ft³ high-flow kit – includes 1 pail and 4 bags

• 0.30 ft³ small kit – contains all components in a single pail

Can I adjust the aggregate amount to change flow?
Yes, but only with the 0.30 ft³ unit. You may remove up to 6 lbs of aggregate for a higher-flow mix. However, do not adjust the aggregate in other unit sizes.
