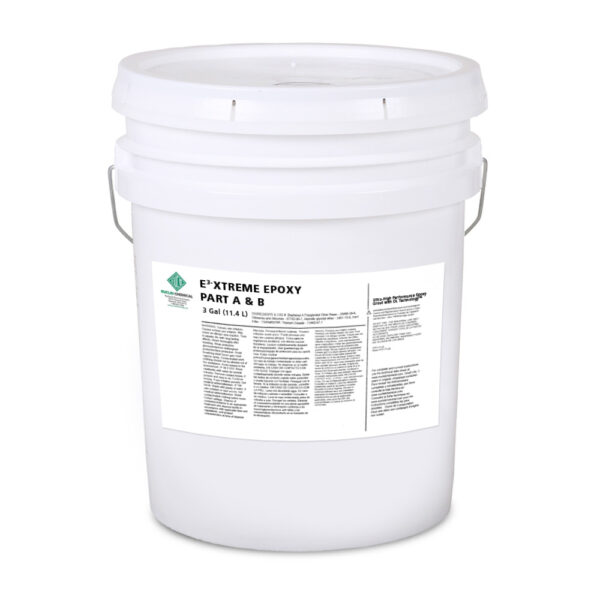

Euclid E3 Xtreme is a precision-grade, three-component epoxy grout formulated to meet the most demanding requirements of heavy industrial settings. Engineered for deep pours and challenging baseplate conditions, this high-flow system delivers ultra-high compressive strength, exceptional bond performance, and long-term dimensional stability. At the core of its formulation is Euclid’s DL Technology aggregate, which minimizes airborne dust during mixing for a cleaner, safer work environment and improves placement consistency under large machinery and structural steel.
With over 19,000 psi compressive strength post-cure and a bearing area greater than 95%, E3 Xtreme provides critical load transfer and vibration resistance where failure is not an option. Its low creep and thermal expansion properties allow it to perform reliably under constant mechanical stress, temperature swings, and exposure to industrial chemicals. Whether used for anchoring heavy rotating equipment, leveling turbine housings, or supporting crane rails, E3 Xtreme provides the structural reliability professionals need for equipment alignment, load bearing, and long service life.
✨ Don’t hesitate to give us a call!
We’re here to answer all of your questions about Euclid E3 Xtreme, or any of the other products we carry.
Key Features of E3 Xtreme
- DL Technology Aggregate
Reduces dust during mixing and handling for cleaner, safer jobsites. - Ultra-High Compressive Strength
Reaches 15,800 psi in 1 day and up to 19,000 psi post-cure, providing exceptional load-bearing capacity. - >95% Effective Bearing Area (EBA)
Ensures excellent contact between the grout and equipment base for superior performance. - High Chemical Resistance
Formulated to withstand harsh industrial environments without degradation. - Fast Strength Gain
Early strength development supports rapid equipment turnaround and minimal downtime. - Very Low Creep and Thermal Expansion
Maintains dimensional stability under dynamic loads and temperature changes.
Recommended Uses for E3 Xtreme
Euclid E3 Xtreme is ideal for heavy industrial applications where structural integrity and vibration resistance are critical. Whether setting rotating machinery or anchoring skid-mounted systems, this grout provides high reliability in extreme conditions.
Common Uses Include:
- Turbines and compressors
- Wind turbine bases
- Skid-mounted equipment
- Presses and stamping machines
- Crane rails and pump bases
- Dynamic load-bearing applications
Frequently Asked Questions
What makes Euclid E3 Xtreme different from other epoxy grouts?
Its patented DL Technology aggregate reduces dust during mixing and delivers superior placement, while its ultra-high compressive strength and low creep support extreme industrial loads.
How thick can E3 Xtreme be applied in a single pour?
It can be placed in lifts from 1 inch to 6 inches.
What is the working time of E3 Xtreme after mixing?
At 75°F (23°C), the working time is approximately 32 minutes.
What’s the recommended temperature for installation?
Store and install the product between 50°F and 90°F. Product and baseplate should ideally be at 75°F to optimize flow and working time.
Is there special surface preparation required for E3 Xtreme?
Yes. Substrates should be clean, sound, and mechanically prepared to achieve CSP 5–7 surface profile per ICRI Guideline 310.2.
How is cleanup handled?
Tools and mixers can be cleaned with soap and water before the grout hardens.
